Overview

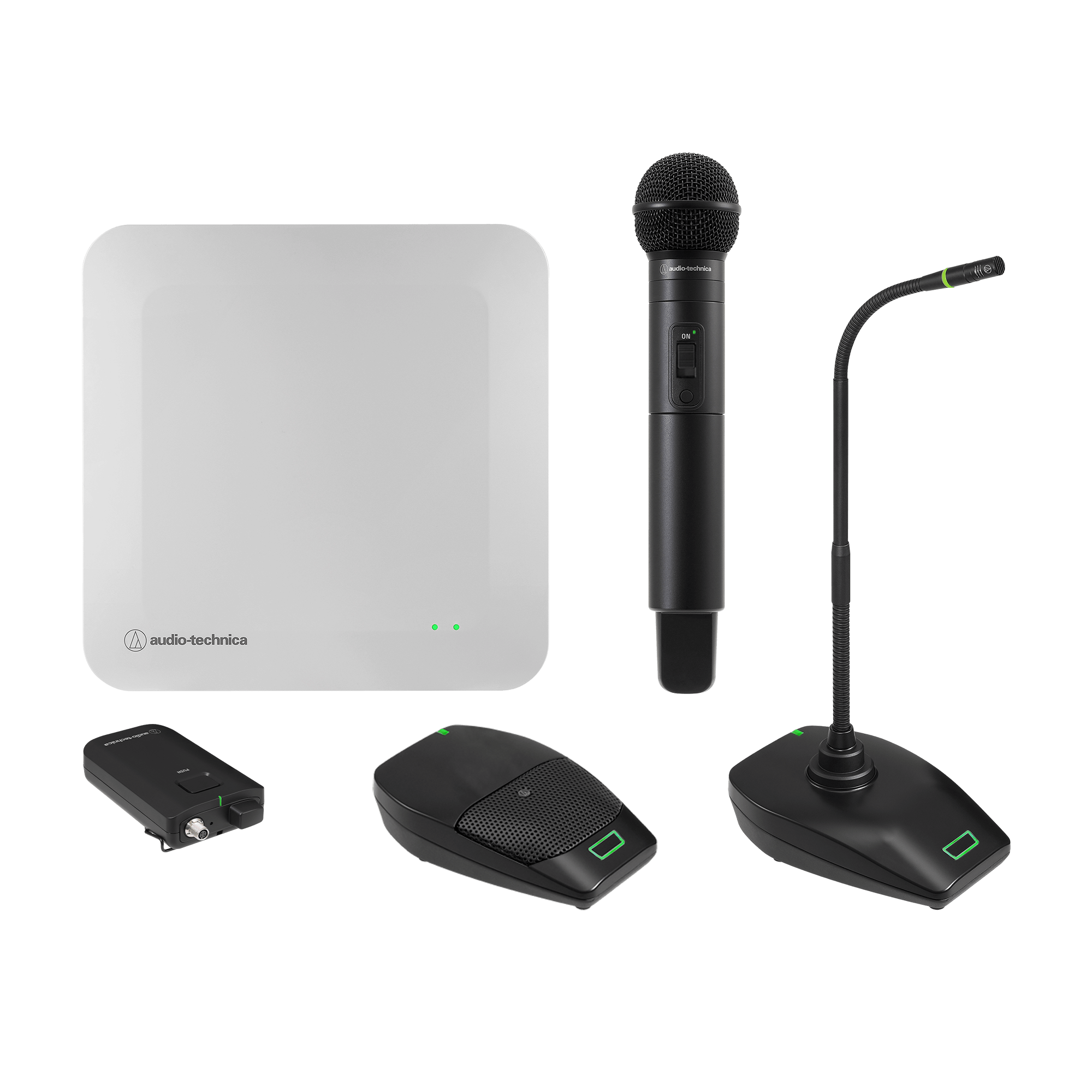

Engineered Sound® Wireless

The Engineered Sound Wireless System is available in two configurations:
ESW-R4180DAN – Dante™-enabled
ESW-R4180LK – A-T LINK enabled

The demand for wireless microphones has grown as a result of the increasing prevalence of videoconferencing and web conferencing. Audio-Technica’s Engineered Sound Wireless System is a DECT wireless system that offers simple, smart, and scalable high-quality audio. This system overcomes many challenges of conventional wireless microphones, such as frequency coordination and the limited number of simultaneous microphones.

Operation is incredibly easy for end users, with microphones ready to use by simply removing them from the charging station. At full charge, the batteries offer all-day operation. Installation is also made easy using PoE to power the receiver(s) and Dante audio output capabilities. System integrators are able to configure detailed settings to meet a wide variety of end-user needs. Wiring is as simple as connecting a single Cat 5e cable to a PoE network switch.

Seamless setup and management is controlled via Audio-Technica’s Wireless Manager software, which is capable of managing multiple wireless systems, including UHF wireless systems, from a single screen. In addition, AES256 encryption comes standard, providing superior security and reliable operation.

Engineered Sound® Wireless

Features

  • Automatic DECT-based frequency management

  • Up to 96 simultaneous usable channels Simple setup with Cat 5e cable and 8-channel Danteâ„¢ (ESW-R4180) or A-T LINK (ESW-R4180LK) audio output

  • Standard mode (48 channels) minimizes latency, and HD mode (96 channels) maximizes the number of channels

  • Selectable RF power output to optimize coverage area

  • Compatible with Audio-Technica’s Wireless Manager software for centralized management of system settings and operations

  • Presets allow transmitters to be customized for multiple applications

  • Roaming function allows transmitters to connect to multiple receivers within preconfigured rooms/areas

  • Long-lasting internal lithium-ion batteries for all-day transmitter use

  • Sound quality optimized for intelligible, crystal-clear audio

  • Adjustable high-pass, transmitter gain, and volume for each receiver channel

  • AES256 encryption for superior security

  • Compatible with Syslog protocol

  • Ability to configure, monitor, and save device settings as projects in Wireless Manager

  • DECT RF scan identifies number of available DECT wireless channels via A-T’s Wireless Manager software

Specifications

Overall System
Operating Frequencies DECT Mode 00 (Europe, Asia): 1,880 to 1,900 MHz DECT Mode 01 (America): 1,920 to 1,930 MHz DECT Mode 03 (Taiwan): 1,880 to 1,895 MHz DECT Mode 21 (Japan): 1,894 to 1,906 MHz DECT Mode 24 (Australia): 1,880 to 1,900 MHz This product is set to the DECT Mode matching the laws and regulations of the country where it will be used.
Operating Range Max. 100 m (328.1'; with RF Power set to Mid)
Open range environment with no interfering signals.
Dynamic Range > 105 dB (A-weighted), typical
Total Harmonic Distortion < 1.0%
Maximum Simultaneous Use (recommended) Standard: 96 channels*
HD mode: 192 channels*
In DECT Mode 00/24.
*Depending on the region and environment.
System Frequency Response Standard: 20 to 20,000 Hz HD mode: 20 to 20,000 Hz Depending on microphone element to attach.
Receiving System True diversity
Latency Standard: 16.7 ms typ.
HD mode: 24.0 ms typ.
Audio Sampling Rate Standard: 24 bits, 48 kHz HD mode: 24 bits, 48 kHz
Encryption System AES256
RF Output Power Max: 250mW, High: 100 mW, Mid: 30 mW, Low: 10 mW, Min: 2 mW (switchable) Depending on the region and environment.
Notes For product improvement, the product is subject to modification without notice.
Receiver & Transmitter Specifications

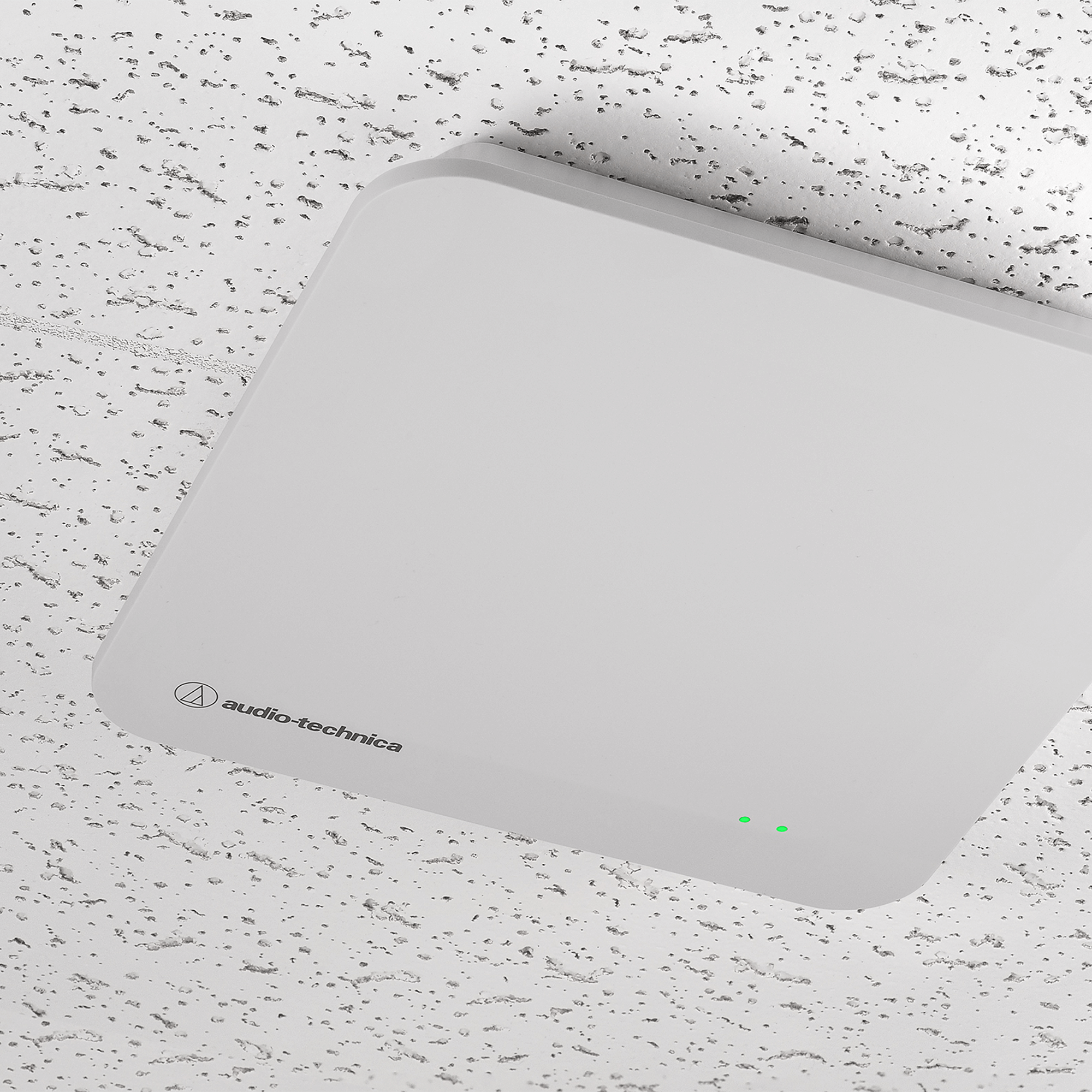

ESW-R4180DAN 8-CHANNEL RECEIVER

Modulation Mode A-field: π / 2-BPSK
B-field: π / 8-8PSK
RF Sensitivity < - 90 dBm
Network Dante: 1 Gbps
IP Control: 100 Mbps
I/O Connector Network/Dante: RJ-45
Power Consumption 4.8 W
Power Supply PoE (IEEE 802.3af Class 0)
Operating Temperature Range -10◦ C to +50◦ C (14◦ F to 122◦ F)
Dimensions 228.6 mm (9.0") x 228.6 mm (9.0") x 43.5 mm (1.7") (W x D x H)
Weight (without included accessories) 620 g (22 oz)
Included Accessory Bracket

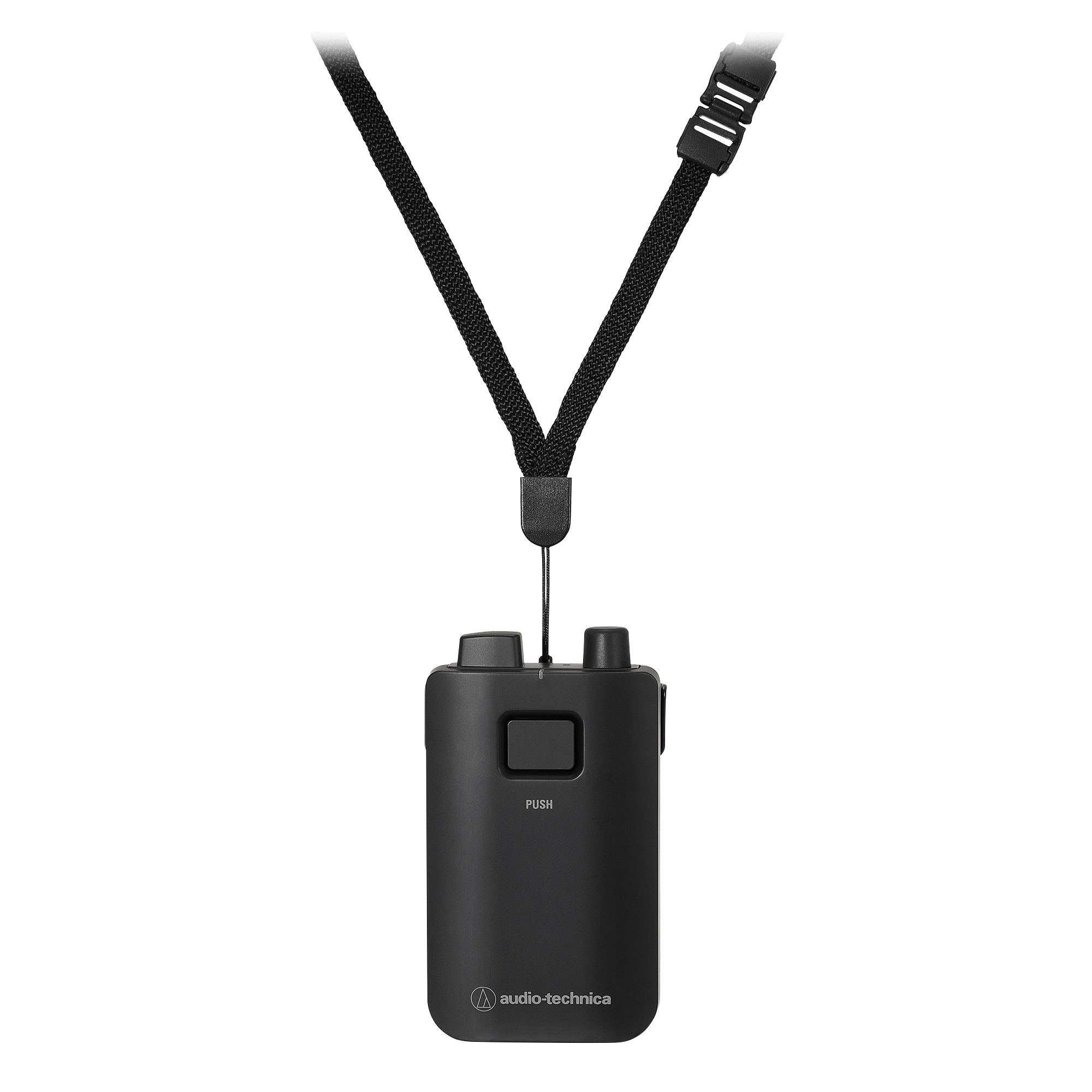

ESW-T4101 BODY-PACK TRANSMITTER

Frequency Response (internal microphone) 20 to 20,000 Hz
Modulation Mode A-field: π / 2-BPSK
B-field: π / 4-QPSK
Input Connection

Four pin locking connector
Pin 1: GND
Pin 2: MIC DETECTION
Pin 3: MIC INPUT
Pin 4: DC BIAS +5 V

Input Connection Diagram

Battery Lithium-ion battery LI-220 (included)
Battery Life 25 hours
This varies depending on usage conditions.
Operating Temperature Range -5◦ C to +45◦ C (23◦ F to 113◦ F)
Dimensions 56 mm (2.2") x 23.5 mm (0.93") x 90 mm (3.5") (W x D x H)
Weight (with battery) 112.3 g (3.96 oz)
Included Accessory Neck strap



ESW-T4102 HANDHELD TRANSMITTER

Modulation Mode A-field: π / 2-BPSK
B-field: π / 4-QPSK
Microphone Capsule Interchangeable microphone capsule-compatible
Battery Lithium-ion battery LI-320 (included)
Battery Life 35 hours
This varies depending on usage conditions.
Operating Temperature Range -5◦ C to +45◦ C (23◦ F to 113◦ F)
Dimensions ESW-T4102 (without capsule): 188.5 mm (7.4”) long x 37 mm (1.5”) maximum diameter
ESW-T4102/C510: 259.5 mm (10”) long x 53.7 mm (2.1”) maximum diameter
Weight (with battery) ESW-T4102 (without capsule): 205 g (7.2 oz)
ESW-T4102/C510: 334 g (12 oz)
Included Accessory AT8456a Quiet-Flex™ stand clamp (5/8"-27 male to 3/8"-16 female threaded screw adapter)



ESW-T4106 BOUNDARY MICROPHONE TRANSMITTER

Frequency Response Omnidirectional: 20 to 18,000 Hz
Cardioid: 20 to 18,000 Hz
Modulation Mode A-field: π / 2-BPSK
B-field: π / 4-QPSK
Microphone Polar Pattern Cardioid, Omnidirectional (selectable)
Battery Lithium-ion battery LI-220 (included)
Battery Life 22 hours
This varies depending on usage conditions.
Charging Time (USB) Approx. 2 hours 40 minutes
This varies depending on usage conditions.
USB Charging Connector USB Type-C (USB 3.0)
Operating Temperature Range - 5◦ C to +45◦ C (23◦ F to 113◦ F)
Dimensions 90.5 mm (3.6") x 129.4 mm (5.1") x 31.9 mm (1.3") (W x D x H)
Weight (with battery) 500 g (18 oz)

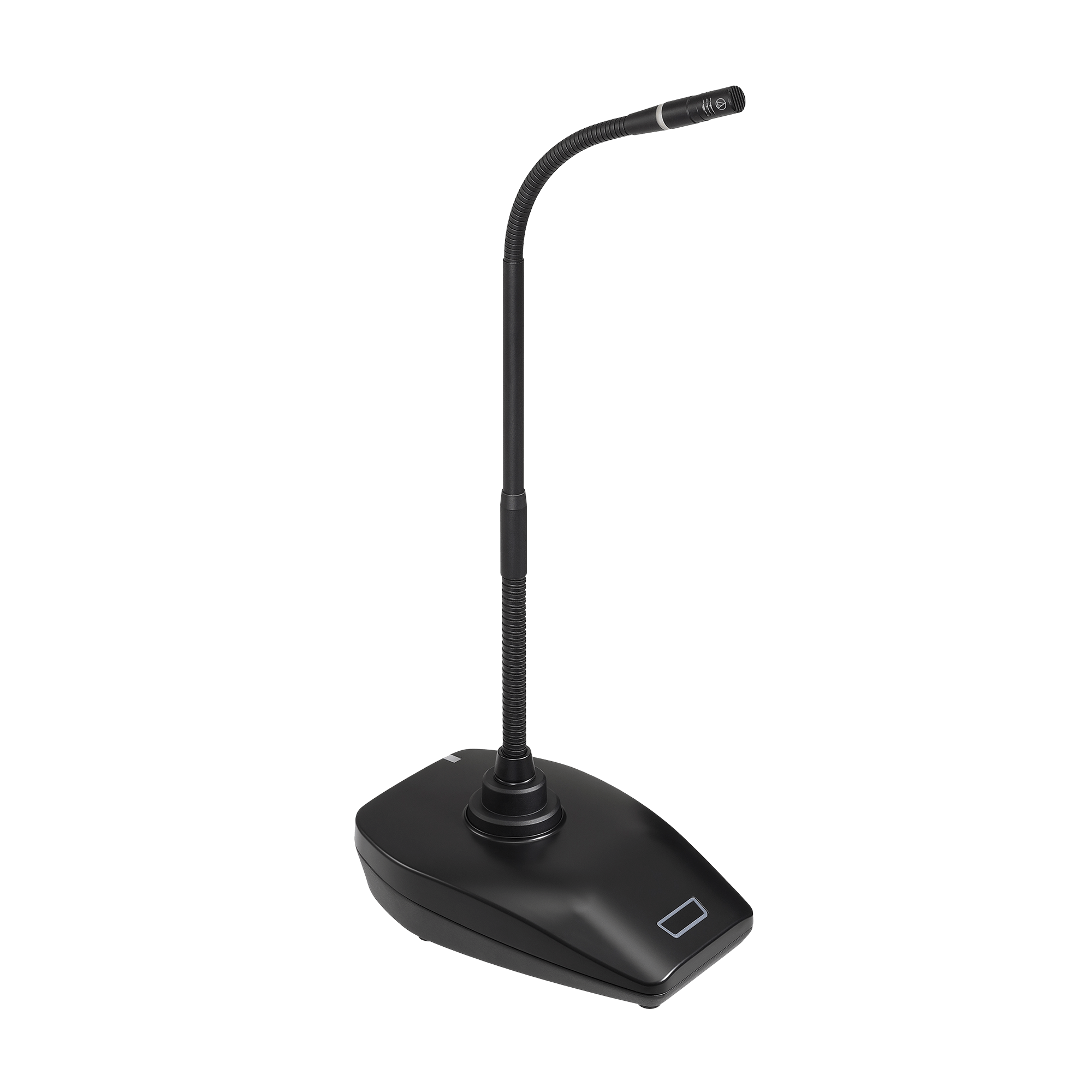

ESW-T4107 DESK STAND TRANSMITTER

Modulation Mode A-field: π / 2-BPSK
B-field: π / 4-QPSK
Microphone ES Series modular gooseneck microphone-compatible
Battery Lithium-ion battery LI-220 (included)
Battery Life 17 hours
This varies depending on usage conditions.
Charging Time (USB) Approx. 2 hours 40 minutes
This varies depending on usage conditions.
USB Charging Connector USB Type-C (USB 3.0)
Operating Temperature Range - 5◦ C to +45◦ C (23◦ F to 113◦ F)
Dimensions 90.5 mm (3.6") x 129.4 mm (5.1") x 47.4 mm (1.9") (W x D x H)
Weight (with battery) 535 g (19 oz)



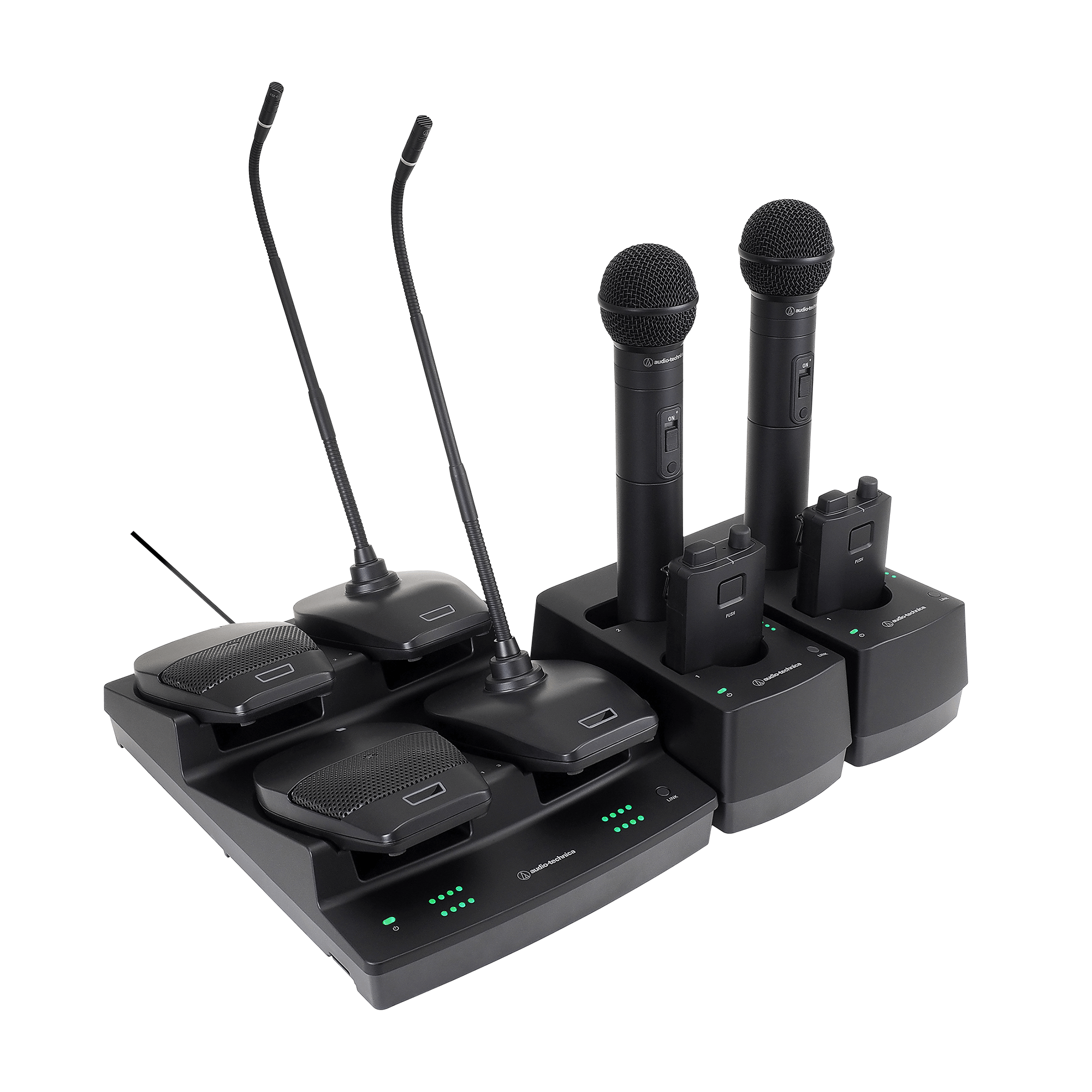

ESW-CHG4 TWO-BAY BODY-PACK AND HANDHELD CHARGING STATION

Power Supply 12 V DC, 3.0 A
Charging Output When charging one to four transmitters: 4.2 V DC, 1.5 A
When charging five or six transmitters: 4.2 V DC, 1.1 A
When charging seven or eight transmitters: 4.2 V DC, 0.7 A
Power Consumption When charging two transmitters: 15.6 W
When charging eight transmitters in four linked charging stations: 30.6 W
Charging Time (ESW-T4101) When charging one to four transmitters: Approx. 50 minutes (50% charged), approx. 2 hours (100% charged)
When charging five or six transmitters: Approx. 1 hour 10 minutes (50% charged), approx. 2 hours 50 minutes (100% charged)
When charging seven or eight transmitters: Approx. 1 hour 40 minutes (50% charged), approx. 3 hours 40 minutes (100% charged)

This varies depending on usage conditions.
Charging Time (ESW-T4102) When charging one to four transmitters: Approx. 1 hour 20 minutes (50% charged), approx. 3 hours (100% charged)
When charging five or six transmitters: Approx. 1 hour 40 minutes (50% charged), approx. 4 hours 10 minutes (100% charged)
When charging seven or eight transmitters: Approx. 2 hours 20 minutes (50% charged), approx. 5 hours 20 minutes (100% charged)

This varies depending on usage conditions.
Network IP Control: 100 Mbps
Operating Temperature Range 0◦ C to 40◦ C (32◦ F to 104◦ F)
Dimensions 95 mm (3.7") x 180 mm (7.1") x 78.5 mm (3.1") (W x D x H)
Weight 532 g (19 oz)
Included Accessories Link cable, link plate, link plate screws, mic holder

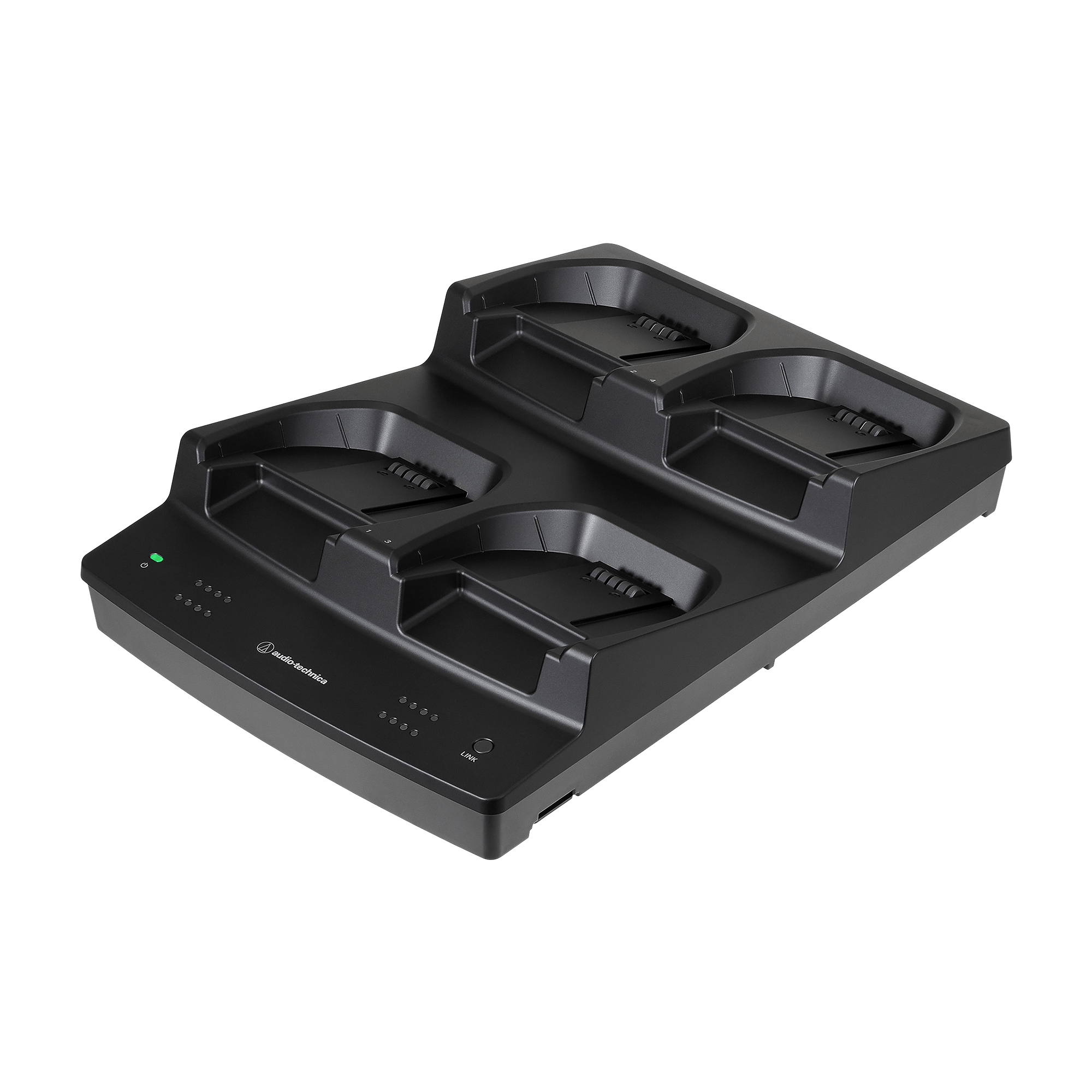

ESW-CHG5 FOUR-BAY DESK STAND AND BOUNDARY CHARGING STATION

Power Supply 12 V DC, 3.0 A
Charging Output When charging one to four transmitters: 4.2 V DC, 1.5 A
When charging five or six transmitters: 4.2 V DC, 1.1 A
When charging seven or eight transmitters: 4.2 V DC, 0.7 A
Power Consumption When charging four transmitters: 30.6 W
Charging Time (ESW-T4106/ESW-T4107) When charging one to four transmitters: Approx. 50 minutes (50% charged), approx. 2 hours (100% charged)
When charging five or six transmitters: Approx. 1 hour 10 minutes (50% charged), approx. 2 hours 50 minutes (100% charged)
When charging seven or eight transmitters: Approx. 1 hour 40 minutes (50% charged), approx. 3 hours 40 minutes (100% charged)

This varies depending on usage conditions.
Network IP Control: 100 Mbps
Operating Temperature Range 0◦ C to 40◦ C (32◦ F to 104◦ F)
Dimensions 209.9 mm (8.3") x 303.9 mm (12") x 65.4 mm (2.6") (W x D x H)
Weight 866 g (31 oz)
Included Accessories Link cable, link plate, link plate screws



LI-220 LITHIUM ION BATTERY

Type Lithium ion
Output Voltage 3.6 V DC
Capacitance 2,200 mAh
Dimensions 39.7 mm (1.6") x 56.7 mm (2.2") x 13.5 mm (0.53") (W x D x H)
Weight 49 g (1.7 oz)



LI-320 LITHIUM ION BATTERY

Type Lithium ion
Output Voltage 3.6 V DC
Capacitance 2,200 mAh
Dimensions 39.7 mm (1.6") x 56.7 mm (2.2") x 13.5 mm (0.53") (W x D x H)
Weight 49 g (1.7 oz)
